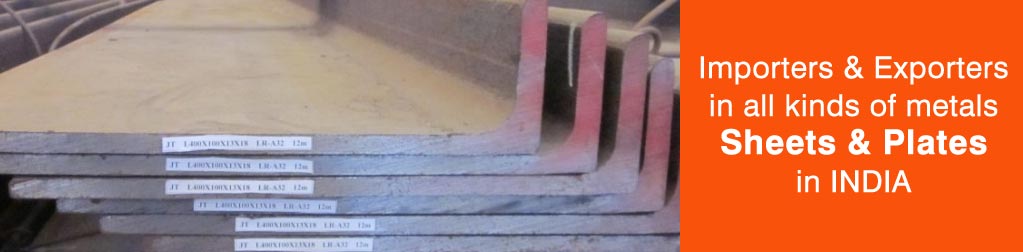

Angle Steel for Ship Building



Specifications

Model Size Section area Weight
A B t1 t2 r1 r2 A M
  mm Cm2 Kg/m
200×90 L200×90×8×14 200 90 8 14 14 7 27.80 21.8
L200×90×9×14 9 29.66 23.3
L200×90×10×14 10 31.52 24.7
250×90 L250×90×9×14 250 90 9 14 17 8.5 34.31 26.9
L250×90×9×15 9 15 35.12 27.6
L250×90×10×15 10 15 37.47 29.4
L250×90×11×16 11 16 40.61 31.9
L250×90×12×16 12 16 42.95 33.7
300×90 L300×90×10×16 300 90 10 16 19 9.5 43.38 34.1
L300×90×11×16 11 46.22 36.3
L300×90×12×17 12 17 49.84 39.1
L300×90×13×17 13 52.67 41.3
350×100 L350×100×11×17 350 100 11 17 22 11 54.41 42.7
L350×100×12×17 12 57.74 45.3
400×100 L400×100×11.5×16 400 100 11.5 16 24 12 61.09 47.9
L400×100×12×18 12 18 64.7 50.8
L400×100×13×18 13 68.59 53.8
450×125 L450×125×11.5×18 450 125 11.5 18 24 12 73.11 57.4

Tolerance

Item Tolerance
JIS G3192
Side Length
(A or B)
A\B<50 ±1.5
50≤A\B<100 ±2.0
100≤A\B<200 ±3.0
200≤A\B ±4.0
Thickness
(t,t1,t2)
A<130 t<6.3 ±0.6
6.3≤t<10 ±0.7
10≤t<16 ±0.8
16≤t ±1.0
A≥130 t<6.3 ±0.7
6.3≤t<10 ±0.8
10≤t<16 ±1.0
16≤t<25 ±1.2
25≤t<40 ±1.5
