the leading stockiest, importers, exporters & suppliers of 1350 Aluminium Plates

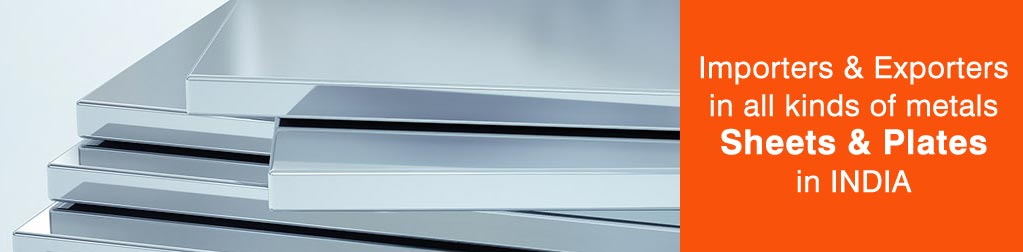

1350 Aluminium Plates


High content material aluminum alloys, on occasion called EC (electrically conduction) at times, both comprise no less than 99.5% and are extra electrically conductive than other a thousand series aluminum. Those are favored alloys in the transformer and switch gear markets, as they provide the most cost-efficient conductive alloy within the one thousand series. Despite the fact that other aluminum items have higher aluminum content, maximum discover those alloys as difficult to source and are exponentially more highly-priced than the 1350 and 1050 alloys.

Those two objects do have one particular difference in where the chemical composition of 1050 has a max has a slightly better max on its silicon content than 1350. It's a completely small distinction and they're each gift as most values, but there may be a completely small distinction that could affect critical programs.

Standard Specs: QQA-1876, ASTM B479

Technical Data Sheet

Chemical Composition Limits
Weight% Si Fe Cu Mn Mg Cr Zn B Ga V+T Cr+Mn+Ti+V Others
1350 0.1 0.40 0.05 0.01 - 0.01 0.05 0.05 0.03 0.02 - 0.03 (each)
0.10 (total)
1350A
Germany
0.25 0.40 0.02 - 0.05 - 0.05 - - - 0.03 0.03 (each)

Typical Mechanical Properties

Material Temper Tensile Strength (N/mm²) Elongation in 50mm
1350 Bar M 60 min 23
1350 Bar H2 85 (min) 13
