Our Product Range

the leading stockiest, importers, exporters & suppliers of 1050A Aluminium Plates

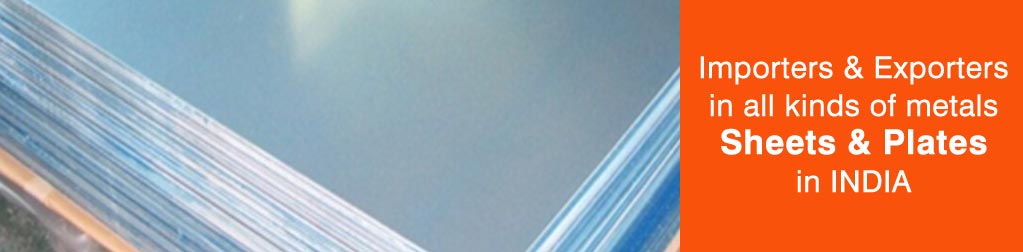

1050A Aluminium Plates


An unalloyed ('pure') non-heat treatable rolled aluminium sheet engineered for general sheet metal work in which excessive mechanical residences are not required.

Internationally acknowledged grade EN AW 1050A H14 – 99.50% pure aluminium (AL 99.5) sheet pressure hardened to the half-hard temper. The preceding BS specification turned into called S1B and the half of-hard temper was called H4, giving S1B H4. Champak Industries range of 1050A will meet all suitable countrywide/global standards.

Machining

Pure aluminium has most effective honest machinability due to the softness of the alloy. The half-hard temper will increase the hardness over the annealed/gentle base alloy but could not be defined as free chipping as compared to the harder, alloyed aluminium's.

We recommend aluminium geometry slicing equipment walking at an inexpensive speed to keep away from the threshold construct-up which could arise at lower reducing speeds. Excessive pace steel equipment may be greater within your means than carbide, specifically with the possibility of a huge rake attitude on machines which cannot attain carbide reducing speeds.

Specification

Champak Industries Stock Aluminium flat rolled product is most commonly specified to ASTM B209M. Product designated as plate for ship building in very specific alloys and tempers in compliance with ASTM B928M.

Typical Applications

• General sheet metal work
• Packaging
• Boiler making
• Heat transfer devices
• Kitchenware
• Chemical industry
• Pharmaceutical industry
• Automotive industry
• Architecture
• Cabinets
• Appliances
• Vessels
• Panelling

Technical Data Sheet

Chemical Composition Limits
Weight% Si Fe Cu Mn Mg Zn Ti Al V Others
1050A EAA 0.25 max 0.40 max 0.05 max 0.05 max 0.05 max 0.07 max 0.05 max 99.5 min - 0.03
1050 USA 0.25 max 0.40 max 0.05 max 0.05 max 0.05 max 0.05 max 0.03 max 99.5 min 0.05 0.03

Typical Mechanical Properties

Material Temper Tensile Strength (N/mm²) Yield Strength (N/mm²) Elongation in 50mm (%)
1050 Bar F 60 (min) - 23
We offer 1050A aluminium alloy in sheet.

Processing

Champak Industries provide an in-house processing service include guillotining where we can cut your aluminium sheet to your specific size requirement.
